Composite thermal insulation system
gräfix 778

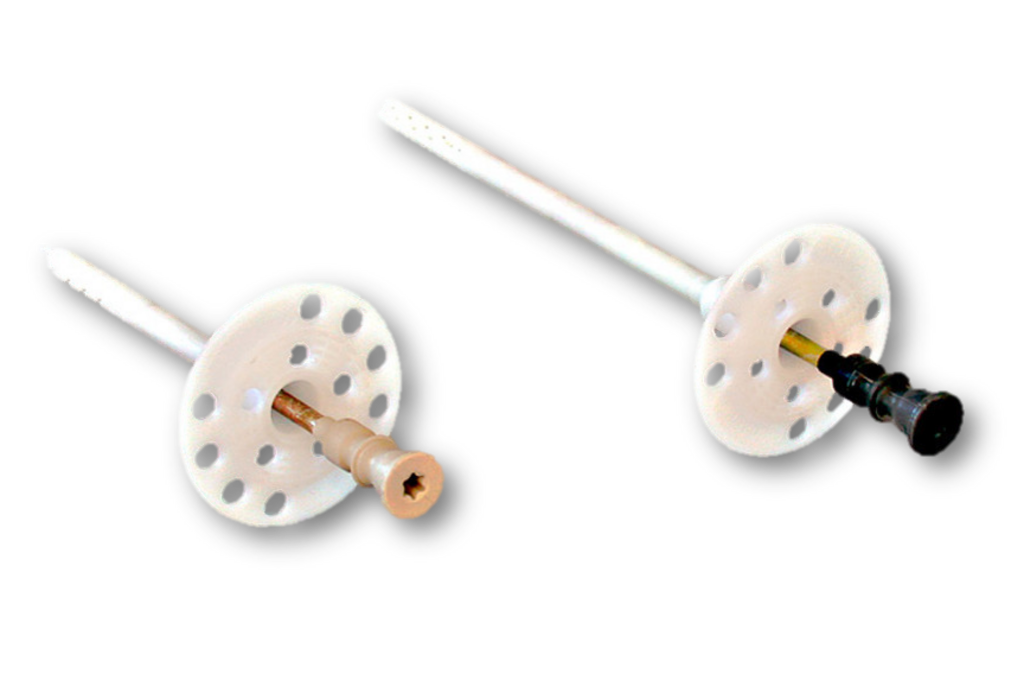

Impact dowel with plastic nail + steel tip
Hilti T-Save impact anchor with plastic nail + steel tip
for flush mounting of insulation boards.
T-Save, dowel disc: Ø 60 mm, lengths = 100 to 280 mm
*Not in stock, please order in advance!
- Universal anchor for rock wool, EPS, PUR, XPS, PIR
- With European Technical Approval (ETA)
- Substrate: Concrete and masonry (A, B, C, D)
- Disc diameter: 60 mm
- Dowel diameter: 8 mm
- Installation: flush with the surface
- Drill hole depth: min. 35 mm
- Anchoring length: 25 mm
- Colour: white/black
