Composite thermal insulation system

gräfix 777

Name: Wolfgang Endress Kalk- und Schotterwerk GmbH & Co. KG
Address: Bayreuther Straße 46, Gräfenberg, 91322, DE
Telephone: 09126/25960
Price range: €€

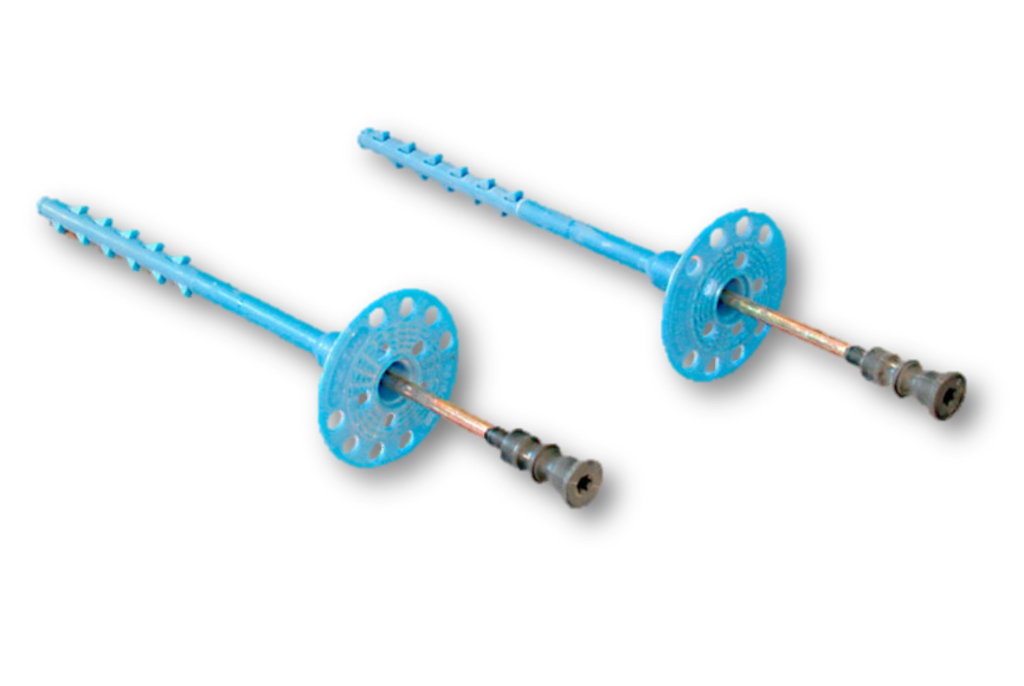

Ejot screw anchor with steel screw

Ejot screw anchor with steel screw for flush or recessed installation of insulation boards

STR U 2G, dowel disc: Ø 60 mm, lengths = 110 to 295 mm

Request now

Universal anchor for all insulation boards
With European Technical Approval (ETA)
Substrate: Concrete and masonry (A, B, C, D, E)
Disc diameter: 60 mm
Dowel diameter: 8 mm
Installation: flush with surface + recessed
Drill hole depth: at least 35 mm flush with the surface (75 mm for aerated concrete), at least 50 mm recessed (90 mm for aerated concrete)
Anchoring length: 25 mm (65 mm for aerated concrete)
Colour: white

gräfix 77390 STR stopper

EPS sealing plugs for gräfix 777

gräfix 77391 Rondelle EPS white or grey

for covering recessed dowel installation

gräfix 77392 Rondelle MW (mineral wool)

for covering recessed dowel installation
